Command Enum Feature
Command Enum Feature Pseudo-Code
void ACTION(int32 arg)
- The Feature takes one 32-bit integer argument.
- The Feature do not return anything.
- The ACTION is performed on target.
Description: |
Macro |
Identifier |
Displayed Name |
Function Identifier |
Group* |
Enum Item Macro |
Enum Value |

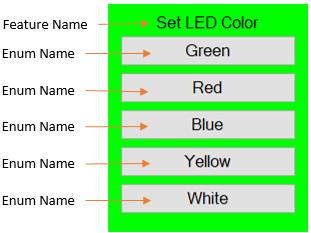

Button Text |
|
Example using all options: |
define_enum_command( |
cmdSetLedColor, |
"Set LED Color", |
SetLedColor, |
19, |
define_enum_item( |
0, |
"Green") |
\ |
define_enum_item( |
1, |
"Red") |
\ |
||||||
define_enum_item( |
-25, |
"Blue") |
\ |
||||||
define_enum_item( |
3, |
"Yellow") |
\ |
||||||
define_enum_item( |
23, |
"White") |
) |
*optional argument. If Group is omitted the Group-Number will default to 0.
The unique message id is derived from the row number, in source file where the macro is used.
Description |
XML |
Feature Root: Start |
<F> |
Command Enum: Start |
<Ce> |
ID |
<I>BYTE</I> |
SUB ID |
<Is>BYTE</Is> |
GROUP |
<Gr>BYTE</Gr> |
NAME |
<N>STRING</N> |
Array of Enum Pairs: Start |
<ps> |
Enum Pair: Start |
<p> |
Enum Pair: Name |
<n>STRING</n> |
Enum Pair: Integer Value |
<i>INT</i> |
Enum Pair: End |
</p> |
The array can hold unlimited number of Enum Pairs |
... |
Array of Enum Pairs: End |
</ps> |
Command Enum: End |
</Ce> |
Feature Root: End |
</F> |
The Enum value is a 32-bit signed (one’s complement) value.
The value is represented by 4 bytes in the message, starting with the Least Significant Byte (Big-Endian).
Byte# |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
Name |
START |
ID |
SUB ID |
INT32 VALUE |
CRC MSB |
CRC LSB |
END |
|||
Value |
0xAA |
[0..255] |
[0..255] |
LSB |
MSB |
CRC16-CITT |
0xBB |
|||
