• A Feature Panel represent one Feature of one specific Target
  • All properties of a Feature Panel are defined in the Target
  • Some common graphical properties are defined in Feature settings and Feature Group Colors settings
  • A Feature Panel is created when the Azande Studio Connection receives a FEATURE_XML_DEFINITION message from Target
  • When the Feature Panel is created it is added to the Dashboard. All panels in Dashboard are sorted according to GROUP number.



An example



Panel Properties

  • All panels display Feature Name
  • Command panels have one or more buttons. When clicking the button the Command is sent to Target
  • Number Values of Events can be formatted. See Value Formatter for more details
  • All Features with Number Value has a optional UNIT that will be displayed after the number

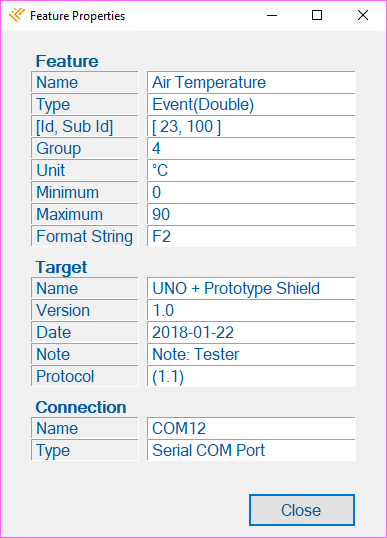

Feature Properties Window

By Right-Clicking a Feature Panel you can access the Feature Properties Window.

The window shows information about:

  • This Feature
  • The Target that implements the Feature
  • The Connection through which this Feature communicates with Target
