Arduino Example DHT11
This is a simple example demonstrating how to use the Azande library together with a DHT11 sensor.
The DHT11 measures Relative Humidity and Temperature.

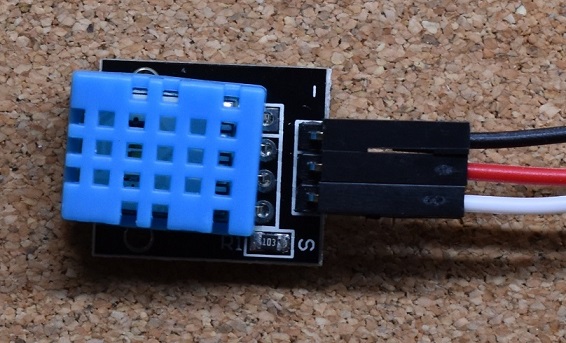

DHT11
Dependencies
This example requires that you have the SimpleDHT library installed.
Features
The following Feature Types are used:
- Event Int32 Feature: The events "Humidity" and "Temperature" sends the measurements to Azande Studio.
- Event Text Feature: The event "Sensor State" is sent, to Azande Studio, after every measurement.

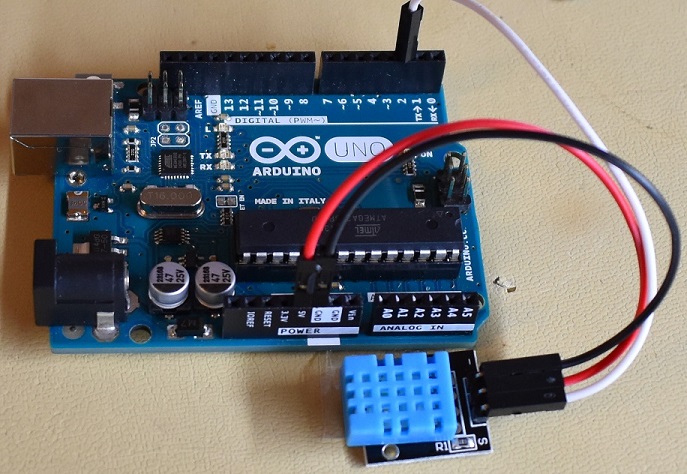

The circuit
DHT11 |
Arduino Board |
|
Pin |
Pin |
Type |
S |
Digital Pin 2 |
Input |
Vcc |
5V or 3V |
Supply |
Gnd |
GND |
Supply |

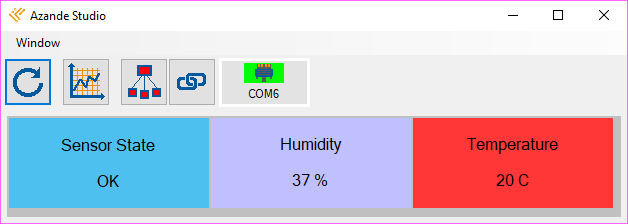

Azande Studio View

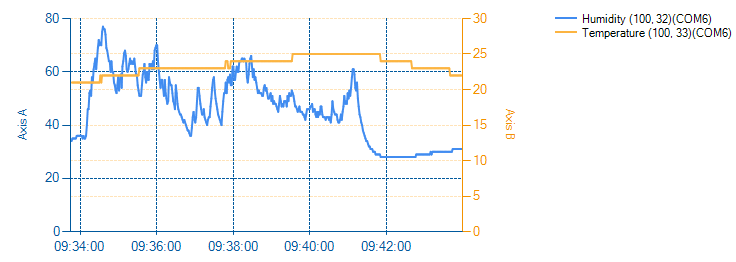

Example Log
Placed the sensor above a bowl with warm water.
At the time 9:41 removed the bowl.
Downloads
The example is included in the Arduino Library.
Click here to access download of the Arduino Library
