Arduino Example Ultrasonic Range
This example demonstrates how to use the Azande Library together with a Ultrasonic Range Detector.

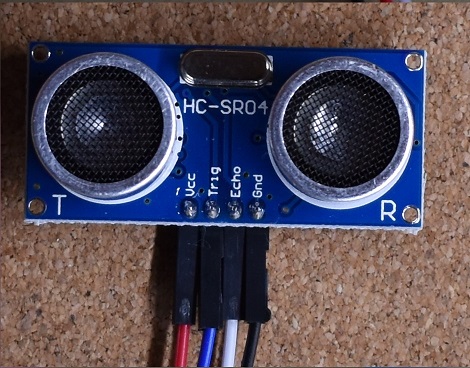

The Ultrasonic Range Detector
Features
The following Feature Types are used:
- Command Bool Feature: With the cmdSetUnit the user can select unit cm/mm to use.
- Event Int32 Feature: The events eventDistanceCm and eventDistanceMm present the measured distance.
- Command Int32 Feature: With the commands cmdSetAlarmCm and cmdSetAlarmMm the user can set limit for alarm.
- Event Bool Feature: The event eventAlarm is sent every time a new measurement is done. True when distance <= limit.

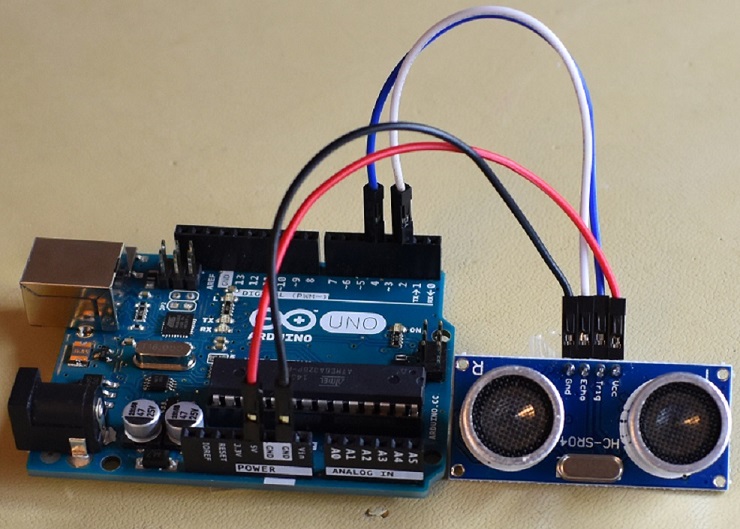

The circuit
Ultrasonic Range Detector |
Arduino Board |
|
Pin |
Pin |
Type |
Vcc |
5V |
Supply |
Trig |
Digital Pin 4 |
Output |
Echo |
Digital Pin 2 |
Input |
Gnd |
GND |
Supply |

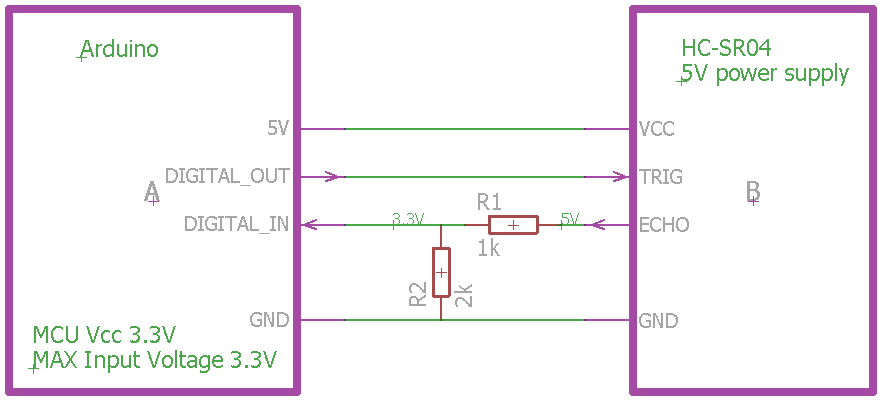

3.3V Supplied Arduino
If you use an Arduino with Vcc = 3.3V, the input ca not exceed 3.3V.
A simple solution is to use a Voltage Divider.

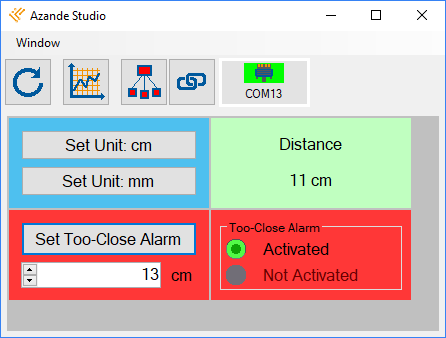

Azande Studio View
Downloads
The example is included in the Arduino Library.
Click here to access download of the Arduino Library
