The Socket Server

The Socket Server enables connections via your LAN. Your target system connects as a Client.


Socket Server Protocol: TCP


In Socket Server settings you can find more information about how to customize your server.





The Socket Client

Your target will connect to the server as a Client.

To be able to connect, to the server, your client need to know:

  • IP Address (or Host Name) of the PC running the server.
  • Port number used by the server.

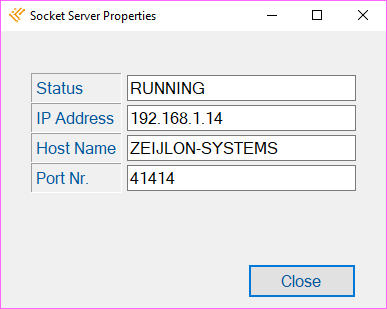

By right-clicking the server when it is running you will see all needed information.

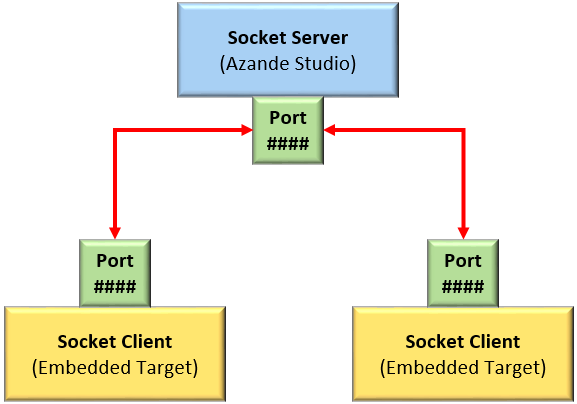

Socket Connection


1. Turn ON Socket Server



2. Make Target connect to Server as a Client



3. The Connection will appear in Connection List when Client connects




Socket Server


Socket Server is ON




Socket Server is OFF

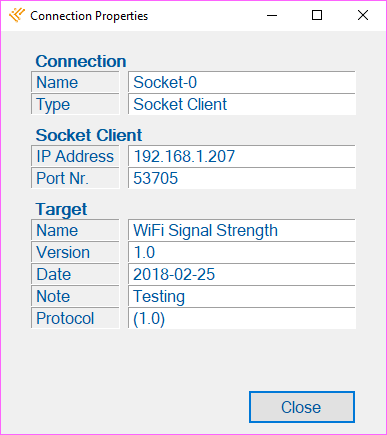

Connection Properties Window

The Connection Properties shows information about:

  • This Connection
  • Socket Client
  • Target connected to this Connection
